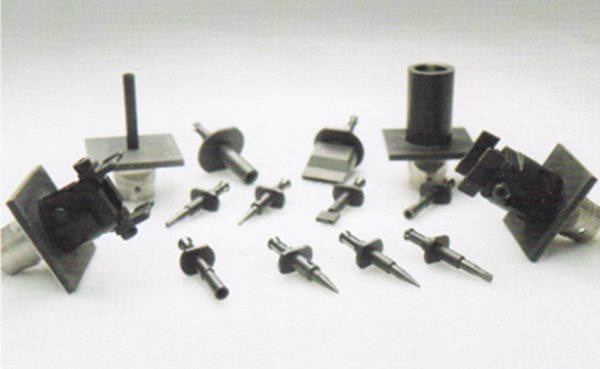

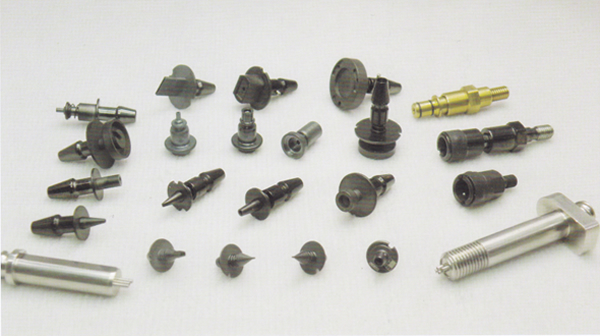

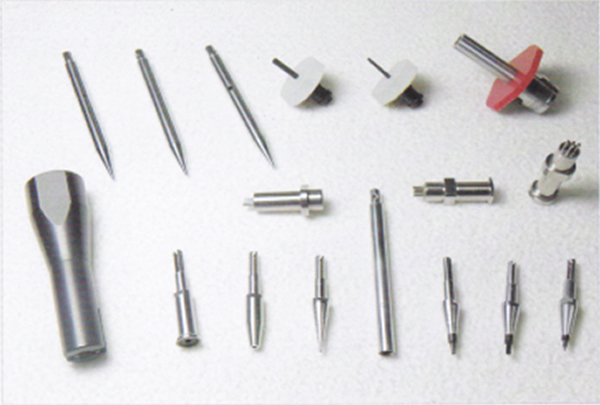

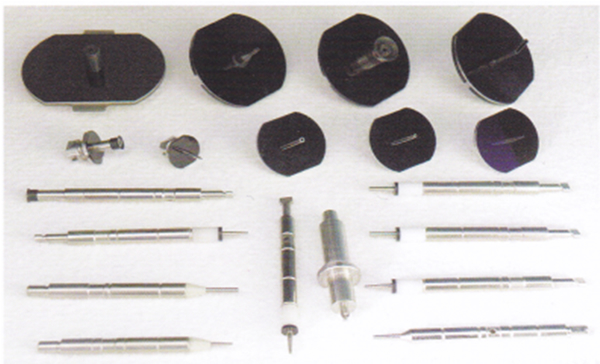

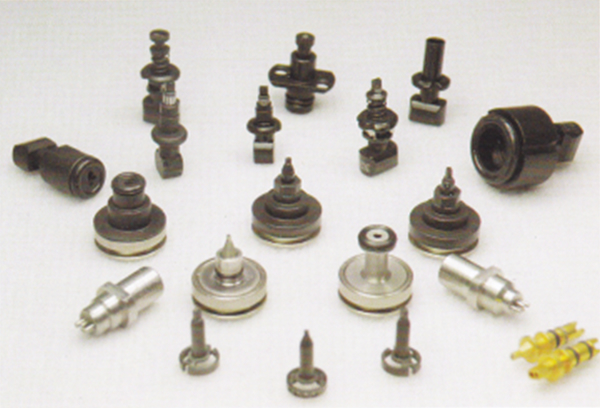

高精度・マウンターノズル（実装機用部品吸着ノズル）

弊社では,金属およびセラミック加工に独自の技術とノウハウを持った加工工場と提携する事により,極めて精度の高い部品吸着ノズルを供給しております。

特徴	高い加工精度・・・独自の微細加工技術による高精細ノズルです。豊富なラインナップ・・・標準/特注ともに各メーカーの実装機に幅広く対応します。安価/短納期供給・・・競争力のある価格でのご提供／短納期（約2週間）で出荷可能。

■お問い合わせ～出荷までの流れ

お問い合わせ	品番をご指定下さい（特注ノズル：対象部品の図面をお送り下さい）
▼
見積書（図面）	弊社より見積書を発行（特注ノズルについては図面も添付致します））
▼
手配のご依頼	提示内容をご確認頂き,問題がなければご発注下さい（注文書送付）
▼
出荷（納品）	ご指定先の事業所に短納期で出荷致します（製造元より直送） ※

※ 送り（納品）先については,日本国内の事業所に限定させて頂きます。

■標準ノズル（装置ブランド別）

※下表のブランドロゴをクリック→実装機別ノズル紹介頁へ

上表に記載の無いブランド（装置メーカー）のノズルについては,別途,弊社まで,お問い合せ下さい。

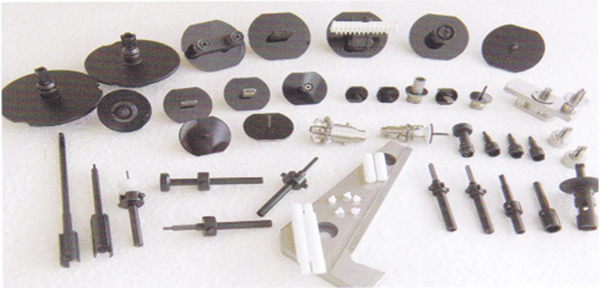

■NPM-16HEAD／CM602-12HEAD

PART No.	PART.NAME	SIZE	REMARCS



N6100038265AA	203ZS(256CN)	0.45/0.3(∞)	CERAMIC



N61001737AC	205CS	0.65/0.35(口)	CERAMIC



N610030510AC	2006CS	0.5/0.6(Φ0.3)	CERAMIC



N610040786AA	225CS	0.6/0.35(X)	CERAMIC



N610040787AA	226CS	0.6/0.5(X)	CERAMIC



N610040788AA	230CS	1.0/0.7(X)	CERAMIC



N610043815AA	235CS	1.6/0.8(王)	CERAMIC



N610040853AA	240CS	Φ2.4/Φ1.8	CERAMIC



N610017371ACC	110CS	Φ0.6/Φ0.4	CERAMIC



N610017371ACC	110S	Φ0.6/Φ0.4	METAL



N610017372ACC	115CS	Φ0.9/Φ0.7	CERAMIC



N610017372ACC	115S	Φ0.9/Φ0.7	METAL



N610017373ACC	120CS	Φ1.3/Φ0.9	CERAMIC



N610017373AC	120S	Φ1.3/Φ0.9	METAL



N610017375AC	130S	Φ2.4/Φ1.8	METAL



N610017376AC	140S	Φ4.0RUBBER	RUBBER TYPE



N6100004673AA	161S	Φ1.3/0.9 MELF	METAL



N6100004673AA	162S	Φ1.8/1.2 MELF	METAL



N6100-70338AA	185S	Φ6.0 RUBBER	RUBBER TYPE



SPECIAL	CNT(LED,LENS & SPECIAL)	DATA FOR ON	SPECIAL

■NPM-8HEAD､CM402(CM202/CM101)

PART No.	PART.NAME	SIZE	REMARCS



N610038265AA	203C(256C)	0.45/0.3(∞)	CERAMIC



N610000995AA	205A	0.65/0.35(口)	CERAMIC



KXFX05V2A00	206A	0.5/0.6(Φ0.3)	CERAMIC



101YC0-K0210	210A	1.1/0.6	CERAMIC



N610040782AB	225C	0.6/0.35(X)	CERAMIC



N610040783AB	226C	0.6/0.5(X)	CERAMIC



N610040784AB	230C	1.0/0.7(X)	CERAMIC



N610040782AB	235C	1.6/0.8(王)	CERAMIC



N610062681AB	240C	Φ2.4/Φ1.8	CERAMIC



KXFX0383A00C	110C	Φ0.6/Φ0.4	CERAMIC



KXFX0383A00	110	Φ0.6/Φ0.4	METAL



KXFX038*A00C	115AC	Φ0.9/Φ0.65	CERAMIC



KXFX038*A00	115AC	Φ0.9/Φ0.65	METAL



KXFX0384A00C	120C	Φ1.3/Φ0.9	CERAMIC



KXFX0384A00	120	Φ1.3/Φ0.9	METAL



KXFX0385A00	130	Φ2.4/Φ1.8	METAL



KXFX0386A00	140	Φ4.0RUBBER	RUBBER TYPE



N6100004673AA	161	Φ1.3/0.9 MELF	METAL



N610000	162	Φ1.8/1.2 MELF	METAL



N6100-70338AA	185	Φ6.0 RUBBER	RUBBER TYPE



KXFX0387A00	450	Φ6.0 RUBBER	RUBBER TYPE



KXFX03NGA00	450	Φ10 RUBBER	RUBBER TYPE



	470	φ4.0/φ3.0	（TIP 1003）



SPECIAL	CNT(LED,LENS & SPECIAL)	DATA　FOR　ON	SPECIAL

■NPM､CM20F､DT401､CM602(2/3HEAD)

PART No.	PART.NAME	SIZE	REMARCS



603	1582	0.65*0.35	CERAMIC



KXFX037SA00C	1001	Φ1.3/Φ0.9	CERAMIC



KXFX037SA00	1001	Φ1.3/Φ0.9	METAL､PLASTIC



KXFX037TA00C	1002	Φ3.0/Φ2.2	CERAMIC



KXFX037TA00	1002	Φ3.0/Φ2.2	METAL､PLASTIC



KXFX037UA00	1003	Φ6.0*4/Φ3.0



KXFX037VA00	1004	Φ8.0/Φ3.6	RUBBER TYPE



KXFX037WA00	1005	Φ10.0/Φ6.0	RUBBER TYPE



KXFX037XA00	1006	SETTING



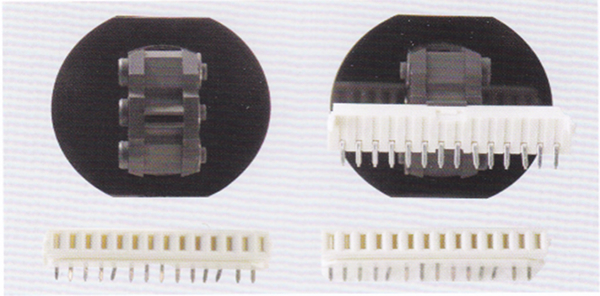

CNT	1101	2*5



CNT	1202	1.4*7.4



CNT	1333	1.8/3*20



CNT	1404 PAD	3*7PAD



CNT	1508	Φ6.0/Φ5.0



CNT	1656	1.8*12



CNT	2437 PAD	3*20PAD



CNT	5754	3-Φ6.0 RUBBER



GRIPPER NOZZLE	1910～SPECIAL		GRIPPER



SPECIAL	CNT(LED,LENS & SPECIAL)	DATA FOR ON	SPECIAL

■MSR､HT-122

PART No.	PART.NAME	SIZE	REMARCS



603	VVS-NEW(octagon)NOZZLE(0603)	0.5/0.65	CERAMIC



10468S0002C	VVS-NEW(octagon)NOZZLE(0603)	0.5/0.6	CERAMIC



10468S0003C	VS NOZZLE(1005)	0.6/1.0	CERAMIC



10468S0004C	S NOZZLE(1608-2125)	1.0/1.6	CERAMIC



1046710134C	M NOZZLE(3216)	Φ1.65/Φ1.2	CERAMIC



10467S0001	L NOZZLE(4532,IC/S)	Φ3.0/Φ2.5



10467S0002	LL NOZZLE(IC/M)	Φ5.5/Φ4.5



10467S0003	LLL NOZZLE(IC/L)	Φ8.0

■MV-SERIES

PART No.	PART.NAME	SIZE	REMARCS



104277327104	SX	0.4/0.6	CERAMIC



104287515101	SA(X)	0.8/1.0	CERAMIC



102247818103	RSS(SS)	1.0/1.4	CERAMIC



102247848601	MA	1.2/1.8	CERAMIC



0179381K	M（#2）	Φ1.2/Φ0.8



1020179680/01	M MELF NOZZLE	Φ1.2/Φ0.8



0106016K	M（#2）	Φ1.6/Φ1.2



1022465171/01	M MELF	Φ1.6/Φ1.2



1020179500/00	L（#3）	Φ2.0



102811003101(F)	LL（#4）	Φ5.5/Φ4.5



1022479022/01c	LLL（#5）	Φ8.0

■BM-SERIES､MSF

PART No.	PART.NAME	SIZE	REMARCS



108070870402D	SX NZ TIP (0603)	0.4/0.6	CERAMIC



108070870402D	SX SET		CERAMIC



104590800404	SA NZ TIP	0.8/1.0	CERAMIC



104590800404	SA SET		CERAMIC



104590801406D	S NZ TIP	1.2/1.8	CERAMIC



104590801406	S SET		CERAMIC



104590802405C	M SET	3.0/4.0/Φ2.5



104590802405	M NZ TIP STEEL



SPECIAL	CN-R1～CN-R12	CNT TYPE	SPECIAL



GRIPPER NOZZLE	SPECIAL		GRIPPER

■MSH3

PART No.	PART.NAME	SIZE	REMARCS



104431061001	SA	0.8/1.0	CERAMIC



104431010004	SA	1.0/1.5	CERAMIC



1044310200	MA	1.2/1.8	CERAMIC



1044310220	MA	3.4/4.0

■MSH2､MSH-G1

PART No.	PART.NAME	SIZE	REMARCS



1044311061001	SA NOZZLE	0.8/1.0	CERAMIC



1018781810/01	S NOZZLE	1.0/1.5	CERAMIC



102378926502	MA NOZZLE	1.2/1.8	CERAMIC



1021206250	M NOZZLE	3.4/4.0

■MPAG3､MPAV2B

PART No.	PART.NAME	SIZE	REMARCS



1047008600	SA SET	0.8/1.0	CERAMIC



104590800402	SA TIP	0.8/1.0	CERAMIC



1047008620	S SET	1.2/1.8	CERAMIC



104590800403C	S TIP	1.2/1.8	CERAMIC



1047008630	M SET	3.4/4.0	METAL



104590802403	M TIP	3.4/4.0	METAL



SPECIAL	CNT	DATA FOR ON

■MMC-SERIES NOZZLE

■MCF-SERIES NOZZLE

■HDP Series Dispensor

PART No.	PART.NAME	SIZE



1021570401	NOZZLEBODY(HOUSING)



1021570402	VS 1D/1S(1608)	Φ0.7/Φ0.4 Ｐ＝0.8



1021570562	S 2D/1S	Φ0.8/Φ0.5 Ｐ＝1.2



1021570542	L 2D/1S	Φ1.06/Φ0.7 Ｐ＝3.0



1021570552	L 2D/1S	Φ1.26/Φ0.9 Ｐ＝3.0



1021570432	S 2D/2S(1608)	Φ0.7/Φ0.4 Ｐ＝0.8



1021570412	L 2D/2S(2125)	Φ0.7/Φ0.4 Ｐ＝1.0



1021570572	S 2D/2S	Φ0.8/Φ0.5 Ｐ＝1.3



	L 2D/2S(3215)	Φ1.0/Φ0.7 Ｐ＝1.2



	L 2D/2S(IC/S5)	Φ1.1/Φ0.8 Ｐ＝2.0



1021570422	L 4D/1S(IC/S)	Φ0.9/Φ0.6 Ｐ＝3.0

■HDP Series Dispensor

PART No.	PART.NAME	SIZE



1048370220	S 1D/1S(1608)	Φ0.6/Φ0.3



104305971102	S 2D/2S(1608)	Φ0.6/Φ0.3 Ｐ＝0.7



104305972101	S 2D/2S(2012)	Φ0.7/Φ0.4 Ｐ＝1.0



1048370420	S 2D/2S(2012)	Φ0.8/Φ0.5 Ｐ＝1.0



1048370220	S 2D/2S(1608)	Φ0.7/Φ0.4 Ｐ＝0.8



104305971102	S 2D/2S(2125)	Φ0.7/Φ0.4 Ｐ＝1.0



104305972101	L 2D/2S(IC/S)	Φ1.1/Φ0.8 Ｐ＝2.0



104305972104	L 4D/1S(IC/L)	Φ0.9/Φ0.6 Ｐ＝3.0

ブランド一覧へ戻る

■BD10S/BD12S-M Dispensor

PART No.	PART.NAME	SIZE	REMARCS



1020 C1	S 2D/2S	Φ0.7/Φ0.4 Ｐ＝0.8	1608



1016 C1	S 2D/2S	Φ0.8/Φ0.5 Ｐ＝1.0	2125



1021 C3	M 2D/2S	Φ1.0/Φ0.7 Ｐ＝1.2	3216



	IC/S 2D/2S	Φ1.3/Φ0.9 Ｐ＝2.0



1021 C1	IC/L 4D/2S	Φ1.3/Φ0.9 Ｐ＝1.5

■BD20S/BD30S-M Dispensor

PART No.	PART.NAME	SIZE	REMARCS



10HGC0	S 1D/1S	S 1D/1S	1608



	2D/2S	Φ0.6/Φ0.3 Ｐ＝0.7	1608



10HJCOM0000	2D/2S	Φ0.7/Φ0.4 Ｐ＝0.8	1608



10HKCOM0000	M 2D/2S	Φ0.8/Φ0.5 Ｐ＝1.0	2125



10HLCOM0000	M 2D/2S	Φ1.0/Φ0.7 Ｐ＝1.2	3216



	IC/S 2D/2S	Φ1.25/Φ0.9 Ｐ＝2.0

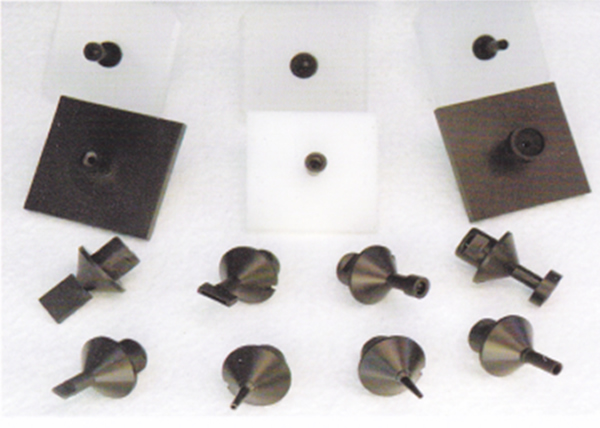

■CM88C(S)-M

PART No.	PART.NAME	SIZE	REMARCS



603	0603(CeramicSquare tip)	0.65mm/0.35mm	CERAMIC



1005	1005(CeramicSquare tip)	1.1mm/0.65mm	CERAMIC



W13VA(1231C1-11115)	1005	Φ0.65/Φ0.45



W13YA(1231C1-11165)	1608	Φ0.9/Φ0.6



W13XA(1231C1-11125)	2115	Φ1.3/Φ0.9



1231C1-11135	2125MELF	Φ1.3/Φ0.9



W13XA(1231C1-11145)	3216	Φ1.8/Φ1.4



	3216 MELF	Φ1.8/Φ1.4



W13XA(1231C1-11153)	IC/S	Φ3.0/Φ2.2



	IC/L	Φ4.0/Φ1.5RUBBER	RUBBER

■CM82C-ME SERIES NOZZLE

■CM82C-MG SERIES NOZZLE

■CM85C-MGU SERIES NOZZLE

■CM86C-M2 SERIES NOZZLE

ブランド一覧へ戻る

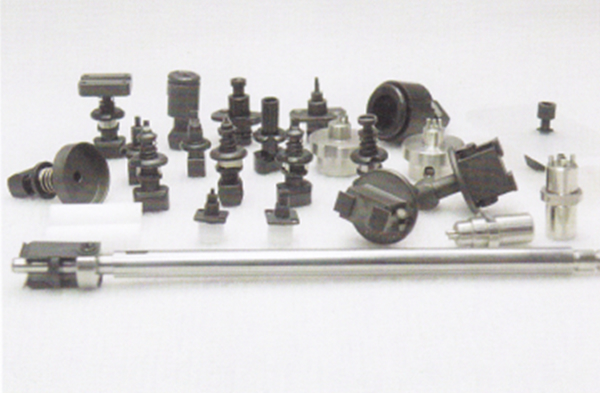

■YS12/24,YG12,YF12

PART No.	PART.NAME	SIZE	REMARCS
KHY-M77AO-AOX	310A SET	0.3/0.25(O)	CERAMIC
	310A TIP		CERAMIC
KHY-M7710-AOX	311A SET	0.75/0.35(口)	CERAMIC
	311A TIP		CERAMIC
KHY-M7720-AOX	312A SET	1.2/0.45(◇）	CERAMIC
	312A TIP		CERAMIC
KHY-M7730-AOX	313A SET	2.0/1.3(王)	CERAMIC
	313A TIP		CERAMIC
KHN-M7710-A1X	301A SET	0.7/0.8(X)	CERAMIC
	301A TIP		CERAMIC
KHN-M7720-A1X	302A SET	1.0/1.7(X)	CERAMIC
	302A TIP		CERAMIC
KHY-M7740-AOX	303A SET/#314A SET	Φ4.0/3.0/2.0
	303A TIP/#314A TIP
KHY-M7750-AOX	304A/#315A	Φ8.0	O-RING
KHY-M7760-AOX	305A/#316A	Φ15.0	O-RING
KHY-M7760-AOX	306A/#317A	Φ3.0/2.0 V-CUT	MELF
KHN-M7790-A1X	309A SET	Φ1.2/Φ0.7	CERAMIC
	309A TIP
GRIPPER NOZZLE		CHIP SIZE Small	GRIPPER
GRIPPER NOZZLE		CHIP SIZE Large	GRIPPER
SPECIAL	CNT	DATAforON(LED,LENS)

■YG100R/B,MG1/8

PART No.	PART.NAME	SIZE	REMARCS
0603 CHIP ONLY	0603 SET	0.35/0.65(口)	CERAMIC
	0603 TIP		CERAMIC
KGS-M7710-A0X	211A SET	0.7/0.8(X)	CERAMIC
	211A TIP		CERAMIC
KGS-M7720-A0X	212A SET	1.0/1.7(X)	CERAMIC
	212A TIP		CERAMIC
KGS-M7730-A0X	213A	Φ4.0/3.0/2.0
KGS-M7740-A0X	214A	Φ8.0	O-RING
KGS-M7750-A0X	215A	Φ13.0	O-RING
KGS-M7760-A0X	216A	Φ3.0/2.0　V-CUT	MELF
KGS-M7790-A0X	219 SET	Φ1.2/Φ0.7	CERAMIC
	219A TIP
KV8-M71N1-A00	211F TIP&SET(71F)	0.7/0.8
KV8-M71N2-A00	212F TIP&SET(72F)	1.0/1.7
KV8-M71N3-A00	213F SET(73F)	Φ4.0/3.0/2.0
KV8-M71N9-A00	219F TIP&SET(79F)	Φ1.2/Φ0.7
GRIPPER NOZZLE		CHIP SIZE Small	GRIPPER
GRIPPER NOZZLE		CHIP SIZE Large	GRIPPER
SPECIAL	CNT	DATAforON(LED,LENS)

■YG200,YG300

PART No.	PART.NAME	SIZE	REMARCS
0603 CHIP ONLY	0603 SET	0.35/0.65(口)	CERAMIC
	0603 TIP		CERAMIC
KGT-M7710-A0X	201A SET	0.7/0.8(X)	CERAMIC
	201A TIP		CERAMIC
KGT-M7720-A0X	202A SET	1.0/1.7(X)	CERAMIC
	202A TIP		CERAMIC
KGT-M7730-A0X	203A SET	Φ4.0/3.0/2.0
	203A TIP
KGT-M7760-A0X	206A	Φ3.0/2.0　V-CUT	MELF
KGT-M7790-A0X	209A SET	Φ1.2/Φ0.7	CERAMIC
	209A TIP		CERAMIC
KV8-M71N1-A00	201F TIP&SET(71F)	0.7/0.8	CERAMIC
KV8-M71N2-A00	202F TIP&SET(72F)	1.0/1.7	CERAMIC
KV8-M71N3-A00	203F SET(73F)	Φ4.0/3.0/2.0
KV8-M71N9-A00	209F TIP&SET(79F)	Φ1.2/Φ0.7	CERAMIC
SPECIAL	CNT	DATA for ON

■YV100X,YV100X-F

PART No.	PART.NAME	SIZE	REMARCS
0603 CHIP ONLY	0603 SET	0.35/0.65(口)	CERAMIC
	0603 TIP		CERAMIC
KV8-M7710-A0X	71A SET	0.7/0.8(X)	CERAMIC
	71A TIP		CERAMIC
KV8-M7720-A0X	72A SET	1.0/1.7(X)	CERAMIC
	72A TIP		CERAMIC
KV8-M7730-00X	73A	Φ4.0/3.0/2.0
KV8-M7740-A0X	74A	Φ8.0	O-RING
KV8-M7760-00X	76A	Φ3.0/2.0 V-CUT	MELF
KV8-M7790-A0X	79A SET	Φ1.2/Φ0.7	CERAMIC
	79A TIP		CERAMIC
KV8-M71N1-A00	71F SET	0.7/0.8(X)
	71F TIP
KV8-M71N2-A00	72F SET	1.0/1.7(X)
	72F TIP
KV8-M71N3-A00	73F SET	Φ4.0/3.0/2.0
	73F TIP
KV8-M71N9-A00	79F SET	Φ1.2/Φ0.7	CERAMIC
	79F TIP		CERAMIC
SPECIAL	CNT	DATAforON(LED,LENS)

■YV88XG/X-F

PART No.	PART.NAME	SIZE	REMARCS
KV7-M7710-A1X	61A SET	0.7/0.8(X)
	71A TIP
KV7-M7720-A1X	62A SET	1.0/1.7(X)
	72A TIP
KV7-M7730-A1X	63A	Φ4.0/3.0/2.0
KV7-M7740-A1X	64A	Φ10	O-RING
KV7-M7750-A1X	65A	Φ15	O-RING
KV7-M7760-A1X	66A	Φ3.0/2.0 V-CUT	MELF
KV7-M7790-A1X	69A	Φ1.2/Φ0.7	CERAMIC
	79A TIP
KGA-M71N1-A0X	61F SET&TIP	0.7/0.8(X)
KGA-M71N2-A0X	62F SET&TIP	1.0/1.7(X)
KGA-M71N3-A0X	63F SET	Φ4.0/3.0/2.0
KGA-M71N4-A0X	64F	Φ8.0	O-RING
KGA-M71N5-A0X	65F	Φ11	O-RING
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

■YVL88,YV100II

PART No.	PART.NAME	SIZE	REMARCS
KMO-M711A-02X	31A SET	1.0/1.2(X)	CERAMIC
	31A TIP		CERAMIC
KV8-M7710-A0X	71A TIP(Body#31)	0.7/0.8(X)	CERAMIC
KV8-M7720-A0X	72A TIP(Body#31)	1.0/1.7(X)	CERAMIC
KMO-M711B-00X	32-1With Reflector	Φ4.0/3.0	REFLECTOR
KMO-M711C-00X	32-2	Φ4.0/3.0
KMO-M711D-00X	33	Φ10	O-RING
KMO-M711E-00X	34	Φ15	O-RING
KMO-M711E-00X	35	Φ3.0/2.0 V-CUT	MELF
	39A SET
	39A TIP
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

*Note(YV88,YV-100-II):Only Bousung eng style type Nozzle#31body&tip

■YV12D,YV64D Dispensor

PART No.	PART.NAME	SIZE
KM4-M7113-01X	2D/2S	Φ0.6/Φ0.3 P=0.7
KG3-M7113-40X	2D/2S	Φ0.7/Φ0.4 P=0.8
KM4-M7113-10X	2D/2S	Φ0.8/Φ0.5 P=1.0
K37-M7113-40X	2D/2S	Φ0.9/Φ0.6 P=1.0
K37-M7113-00X	2D/2S	Φ1.3/Φ0.9 P=2.0
K37-M7113-20X	1D/1S	Φ0.8/Φ0.5 P=0.9
KM4-M7113-20X	1D/2S	Φ0.6/Φ0.3 SP=2.2
KM4-M7113-30X	1D/2S	Φ0.8/Φ0.5 SP=2.2
KM4-M7113-40X	1D/2S	Φ1.8/Φ1.4 SP=4.0
KM4-M7113-50X	1D/2S	Φ1.8/Φ1.05 SP=4.0

ブランド一覧へ戻る

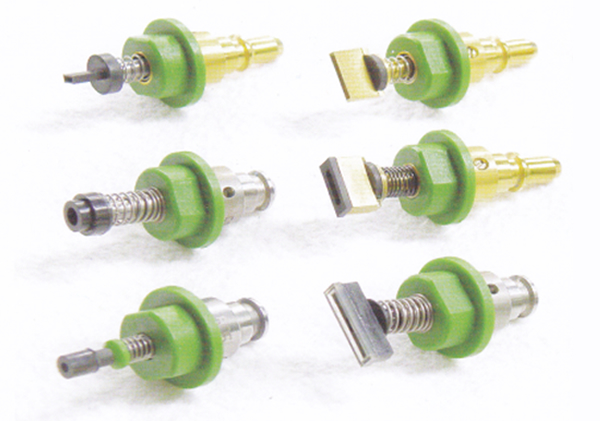

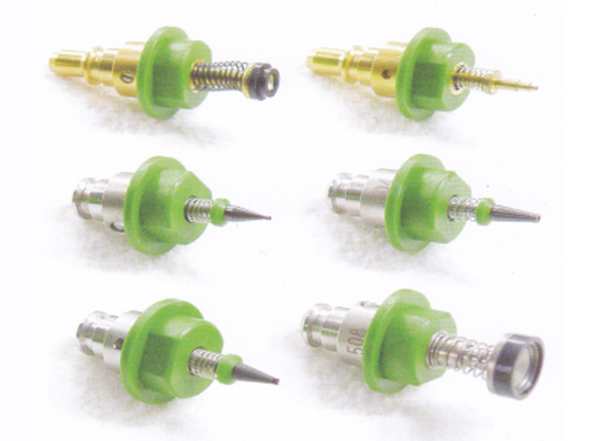

■KE2050～2080,FX1/3

PART No.	PART.NAME	SIZE	REMARCS
E3608-729-0A0	#500ASS'Y	1.0mm/0.5mm(5Holes)
E3600-729-0A0	#501ASS'Y	0.7mm/0.4mm(Φ0.25Hole)
E3601-729-0A0	#502ASS'Y	Φ0.7/Φ0.35
E3602-729-0A0	#503ASS'Y	Φ1.0/Φ0.6
E3603-729-0A0	#504ASS'Y	Φ1.5/Φ1.0
E3604-729-0A0	#505ASS'Y	Φ3.5/Φ1.7	PAD TYPE
E3605-729-0A0	#506ASS'Y	Φ5.0/Φ3.2	PAD TYPE
E3606-729-0A0	#507ASS'Y	Φ8.5/Φ5.0	PAD TYPE
E3607-729-0A0	#508ASS'Y	Φ9.5/Φ8.0	PAD TYPE
	#500 TIP	1.0mm/0.5mm(5Holes)
	#501 TIP	0.7mm/0.4mm(Φ0.25Hole)
	#502 TIP	Φ0.7/Φ0.35
	#503 TIP	Φ1.0/Φ0.6
	#504 TIP	Φ1.5/Φ1.0
	#505 TIP	Φ3.5/Φ1.7	PAD TYPE
	#506 TIP	Φ5.0/Φ3.2	PAD TYPE
	#507 TIP	Φ8.5/Φ5.0	PAD TYPE
	#508 TIP	Φ9.5/Φ8.0	PAD TYPE
SPECIAL	CNT	DATAforON(LED,LENS)

■KE2010～2040

PART No.	PART.NAME	SIZE	REMARCS
E3608-729-0A0	#500ASS'Y(2Holes)	0.5mm/1.0mm(Φ0.3）
E3600-729-0A0	#501ASS'Y	Φ0.7/Φ0.2
E3601-729-0A0	#502ASS'Y	Φ0.7/Φ0.4
E3602-729-0A0	#503ASS'Y	Φ1.0/Φ0.6
E3603-729-0A0	#504ASS'Y	Φ1.5/Φ0.9
E3604-729-0A0	#505ASS'Y	Φ3.5/Φ1.7	PAD TYPE
E3605-729-0A0	#506ASS'Y	Φ5.0/Φ3.2	PAD TYPE
E3606-729-0A0	#507ASS'Y	Φ8.5/Φ5.0	PAD TYPE
E3607-729-0A0	#508ASS'Y	Φ9.5/Φ8.0	PAD TYPE
E365X-729-000	#500 TIP（2Holes)	0.5mm/1.0mm(Φ0.3）
E3651-729-000	#501 TIP	Φ0.7/Φ0.2
E3654-729-000	#502 TIP	Φ0.7/Φ0.4
E3655-729-000	#503 TIP	Φ1.0/Φ0.6
E3656-729-000	#504 TIP	Φ1.5/Φ0.9
E3658-729-000	#505 TIP	Φ3.5/Φ1.7	PAD TYPE
E3660-729-000	#506 TIP	Φ5.0/Φ3.2	PAD TYPE
E3661-729-000	#507 TIP	Φ8.5/Φ5.0	PAD TYPE
E3662-729-000	#508 TIP	Φ9.5/Φ8.0	PAD TYPE
E3615-729-0A0	#510Melf	Φ1.5	MELF
E3616-729-0A0	#511Melf	Φ2.0	MELF
E3617-729-0A0	#512	1.6*9	CNT
E3618-729-0A0	#513	1.2*6	CNT
E3619-729-0A0	#514	1.2*9	CNT
E3620-729-0A0	#515	1.0*4	CNT
E3621-729-0A0	#516	0.9*9	CNT
E3622-729-0A0	#517	3.4*9PAD	CNT
GRIPPER NOZZLE		CHIP SIZE Large
GRIPPER NOZZLE		CHIP SIZE Small
SPECIAL	CNT	DATAforON(LED,LENS)

■KE730～760

PART No.	PART.NAME	SIZE	REMARCS
E3501-721-0A0	#101 ASS'Y	Φ1.0/Φ0.4
E3502-721-0A0	#102 ASS'Y	Φ1.5/Φ1.0
E3503-721-0A0	#103 ASS'Y	Φ3.0/Φ1.7
E3504-721-0A0	#104 ASS'Y	Φ4.0/Φ3.2
E3505-721-0A0	#105 ASS'Y	Φ6.5/Φ5.0	PAD TYPE
E3551-721-0A0	#106 ASS'Y	Φ9.5/Φ8.0	PAD TYPE
E3521-721-000	#101 TIP	Φ1.0/Φ0.4
E3522-721-000	#102 TIP	Φ1.5/Φ1.0
E3523-721-000	#103 TIP	Φ3.0/Φ1.7
E3524-721-000	#104 TIP	Φ4.0/Φ3.2
E3587-700-000	#105 TIP	Φ6.5/Φ5.0	PAD TYPE
E3551-721-0A0	#106 TIP	Φ9.5/Φ8.0	PAD TYPE

■KD770 Dispensor

PART No.	PART.NAME	SIZE
E3401-802-000	DISP.NZ .S .2D/1S DIA	Φ0.6/Φ0.3 P=0.7
E3406-802-000	DISP.NZ. M. 2D/2S DIA	Φ0.7/Φ0.4 P=1.0
E3411-802-000	DISP.NZ .L .1D/1S DIA	Φ0.9/Φ0.6 P=1.5
E3416-802-000	DISP.NZ. LL. 2D/2S DIA	Φ1.3/Φ0.9 P=2.0
E3421-802-000	DISP.NZ. XL. 4D/2S DIA	Φ1.3/Φ0.9 P=1.5

■KD775 Dispensor

PART No.	PART.NAME	SIZE
E3401802000	DISP.NZ .S .2D/1S DIA	Φ0.6/Φ0.3 P=0.7
E3406802000	DISP.NZ. M. 2D/2S DIA	Φ0.7/Φ0.4 P=1.0
E3411802000	DISP.NZ .L .1D/1S DIA	Φ0.9/Φ0.6 P=1.5
E3416802000	DISP.NZ. LL. 2D/2S DIA	Φ1.3/Φ0.9 P=2.0
E3421802000	DISP.NZ. XL. 4D/2S DIA	Φ1.3/Φ0.9 P=1.5

ブランド一覧へ戻る

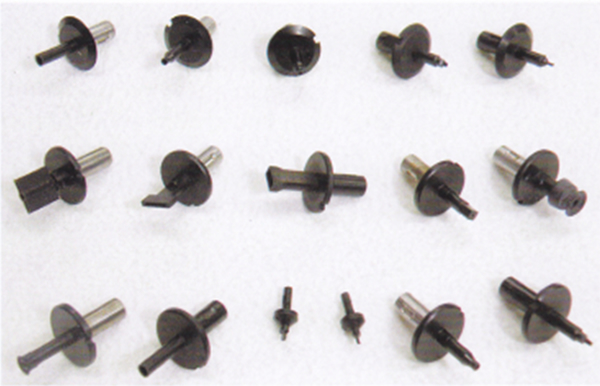

■M6,M7,M10

PART No.	PART.NAME	SIZE	REMARCS
LC6-M7712-00	P031 SET	0.5/0.4(X)	CERAMIC
	P031 TIP	0.5/0.4(X)	CERAMIC
LC6-M7714-00	P032 SET	0.9/0.6(X)	CERAMIC
	P032 TIP	0.9/0.6(X)	CERAMIC
LC6-M7716-00	P033 SET	Φ1.3/Φ0.7(○)	CERAMIC
	P033 TIP	Φ1.3/Φ0.7(○)	CERAMIC
LC6-M7718-00	P034 SET	Φ1.8/Φ1.2(○)	CERAMIC
	P034 TIP	Φ1.8/Φ1.2(○)	CERAMIC
LC6-M7724-00	P042 SET	0.9/0.7(X)	CERAMIC
	P042 TIP	0.9/0.7(X)	CERAMIC
LC6-M7709-00	P005	Φ3.0/Φ2.0
LC6-M770B-00	P006	Φ4.5/Φ3.5
LC6-M770D-00	P012	Φ2 MELF
LC6-M770F-00	P013	Φ2.5 MELF
LC6-M770H-00	P017	Φ4	RUBBER
LC6-M770K-00	P018	Φ6	RUBBER
LC6-M770M-00	P019	Φ8	RUBBER
LC6-M770P-00	P020	Φ10	RUBBER
LC6-M7729-00	P051 SET	0.7/0.3(□）	CERAMIC
	P051 TIP	0.7/0.3(□）	CERAMIC
LC6-M772B-00	P052 SET	1.2/0.45(□）	CERAMIC
	P052 TIP	1.2/0.45(□）	CERAMIC
LC6-M772D-00	P053 SET	2.0/1.3(王)	CERAMIC
	P053 TIP	2.0/1.3(王)	CERAMIC
SPECIAL	CNT	DATA for ON

■M1,M4

PART No.	PART.NAME	SIZE	REMARCS
LGO-M771G-000	M031 SET	0.5/0.4(X)	CERAMIC
	M031 TIP	0.5/0.4(X)	CERAMIC
LGO-M771K-000	M032 SET	0.9/0.6(X)	CERAMIC
	M032 TIP	0.9/0.6(X)	CERAMIC
LGO-M771N-000	M033 SET	Φ1.3/Φ0.7(○)	CERAMIC
	M033 TIP	Φ1.3/Φ0.7(○)	CERAMIC
LGO-M7701-000	M001	0.5/0.4(X)	CERAMIC
LGO-M7703-000	M002	0.9/0.6(X)	CERAMIC
LGO-M7705-000	M003	Φ1.3/Φ0.7(○)	CERAMIC
LGO-M7707-000	M004	Φ1.8/Φ1.2(○)	CERAMIC
LGO-M7709-000	M005	Φ3.0/Φ2.0
LGO-M770B-000	M006	Φ4.5/Φ3.5
LGO-M770D-000	M012	Φ2 MELF
LGO-M770F-000	M013	Φ2.5 MELF
LGO-M770H-000	M017	Φ4	RUBBER
LGO-M770K-000	M018	Φ6	RUBBER
LGO-M770M-000	M019	Φ8	RUBBER
LGO-M770S-000	M020	Φ10	RUBBER
LGO-M770V-00	M021	0.9/0.7(X)	CERAMIC
LGO-M7719-00	M022	0.9/1.0(X)	CERAMIC
SPECIAL	CNT	DATA for ON

■M2

PART No.	PART.NAME	SIZE	REMARCS
LC1-M7712-00	N031 SET	0.5/0.4(X)	CERAMIC
	N031 TIP	0.5/0.4(X)	CERAMIC
LC1-M7714-00	N032 SET	0.9/0.6(X)	CERAMIC
	N032 TIP	0.9/0.6(X)	CERAMIC
LC1-M7716-00	N033 SET	Φ1.3/Φ0.65(○)	CERAMIC
	N033 TIP	Φ1.3/Φ0.65(○)	CERAMIC
LC1-M7701-00	N001	0.5/0.4(X)	CERAMIC
LC1-M7703-00	N002	0.9/0.6(X)	CERAMIC
LC1-M7705-00	N003	Φ1.3/Φ0.7(○)	CERAMIC
LC1-M7707-00	N004	Φ1.8/Φ1.2(○)	CERAMIC
LC1-M7709-00	N005	Φ3.0/Φ2.0	CERAMIC
LC1-M770B-00	N006	Φ4.5/Φ3.5
LC1-M770D-00	N012	Φ2 MELF
LC1-M770F-00	N013	Φ2.5 MELF
LC1-M770H-00	N017	Φ4	RUBBER
LC1-M770K-00	N018	Φ6	RUBBER
LC1-M770M-00	N019	Φ8	RUBBER
LC1-M770P-00	N020	Φ10	RUBBER
LC1-M770S-00	N021	0.9/0.7(X)	CERAMIC
LC1-M770U-00	N022	0.9/1.0(X)	CERAMIC
SPECIAL	CNT	DATA for ON

ブランド一覧へ戻る

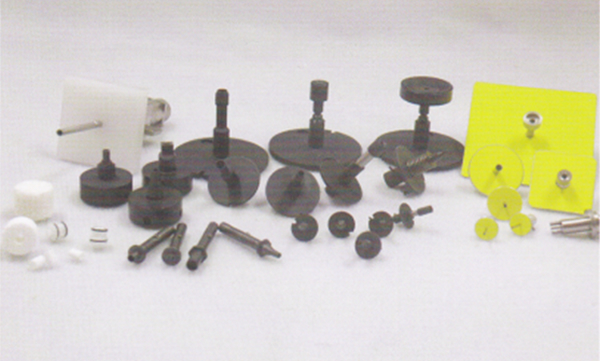

■NXT H08/H12(DISK 9.0)

PART No.	PART.NAME	SIZE	REMARCS
0402	Φ0.3	Φ0.4/0.3mm	CERAMIC
AA05600-Yellow	Φ0.4	Φ0.4/Φ0.25	CERAMIC
AA05700-Blue	Φ0.7	Φ0.7/Φ0.38	CERAMIC
AA05800-Pink	Φ1.0	Φ1.0/Φ0.65	CERAMIC
AA20A00-Green	Φ1.3	Φ1.3/Φ0.9	CERAMIC
AA06400-Orange	Φ1.3MELF	Φ1.3/Φ0.9	CERAMIC
AA20B00-Aqua	Φ1.8	Φ1.8/Φ1.2	CERAMIC
AA19G00-Orange	Φ1.8MELF	Φ1.8/Φ1.2	CERAMIC
AA20C00-Purple	Φ2.5	Φ2.5/Φ2.0	CERAMIC
AA20D00-Yellow-Green	Φ3.75	Φ3.75/Φ3.0	CERAMIC
SPECIAL	CNT	DATAforON(LED)	SPECIAL

■NXT H04(DISK 19.0)

PART No.	PART.NAME	SIZE	REMARCS
AA06W00	Φ1.0	Φ1.0/Φ0.7	CERAMIC
AA06X00	Φ1.3	Φ1.3/Φ0.9	CERAMIC
AA06Y00	Φ1.8	Φ1.8/Φ1.2	CERAMIC
AA06Z00	Φ2.5	Φ2.5/Φ2.0	CERAMIC
AA2KE01	Φ2.5MELF	Φ2.5/Φ2.0	CERAMIC
AA07A00	Φ3.75	Φ3.75/Φ3.0	CERAMIC
AA07G00	Φ3.75G	Φ3.75RUBBER
AA07H00	Φ5.0	Φ5.0
AA07C00	Φ5.0G	Φ5.0RUBBER
AA07K00	Φ7.0	Φ7.0
AA07D00	Φ7.0G	Φ7.0RUBBER
AA07E00	Φ10.0	10
SPECIAL	Φ15.0	15	SPECIAL
	CNT	DATAforON(LED,LENS)

■NXT H01/H02(DISK 36.0)

PART No.	PART.NAME	SIZE	REMARCS
AA0AS00	Φ1.0	Φ1.0/Φ0.7	CERAMIC
AA05800	Φ1.3	Φ1.3/Φ0.9	CERAMIC
AA06900	Φ1.8	Φ1.8/Φ1.2	CERAMIC
AA07000	Φ2.5	Φ2.5/Φ2.0	CERAMIC
AA08400	Φ2.5G	Φ2.5/Φ2.0
AA07100	Φ3.75	Φ3.75/Φ3.0	CERAMIC
AA08500	Φ3.75G	Φ3.75RUBBER
AA07200	Φ5.0	Φ5.0
AA08000	Φ5.0G	Φ5.0RUBBER
AA07300	Φ7.0	Φ7.0
AA08100	Φ7.0G	Φ7.0RUBBER
AA08200	Φ10.0	10
SPECIAL	Φ15.0	15	SPECIAL
	CNT	DATAforON(LED,LENS)

■NXT-AIM H08M(DISK 19.0)

PART No.	PART.NAME	SIZE	REMARCS
H08M	Φ1.0	Φ1.0/Φ0.7	CERAMIC
H08M	Φ1.3	Φ1.3/Φ0.9	CERAMIC
H08M	Φ1.8	Φ1.8/Φ1.2	CERAMIC
H08M	Φ2.5	Φ2.5/Φ2.0	CERAMIC
H08M	Φ2.5MELF	Φ2.5/Φ2.0	CERAMIC
H08M	Φ3.75	Φ3.75/Φ3.0
H08M	Φ3.75G	Φ3.75RUBBER
H08M	Φ5.0	Φ5.0
H08M	Φ5.0G	Φ5.0RUBBER
SPECIAL	Φ7.0	Φ7.0	SPECIAL
	CNT	DATAforON(LED,LENS)

■CP7,8

PART No.	PART.NAME	SIZE	REMARCS
R08-004	ASS'Y(Φ0.4）Straight	8mm Disk
R08-004C	ASS'Y(Φ0.4）Taper type	8mm Disk	CORONA
ADCPH-9520	ASS'Y(Φ0.7）	8mm Disk
ADCPH-9530	ASS'Y(Φ1.0）	8mm Disk
ADCPH-9540	ASS'Y(Φ1.3）	8mm Disk
ADCPH-9700	ASS'Y(Φ1.3MELF）	8mm Disk
ADCPH-9550	ASS'Y(Φ1.8）	16mm Disk
ADCPH-9560	ASS'Y(Φ2.5）	16mm Disk
ADCPH-9800	ASS'Y(Φ2.5MELF）	16mm Disk
ADCPH-9570	ASS'Y(Φ3.75）	16mm Disk

■CP6

PART No.	PART.NAME	SIZE	REMARCS
AWPH-9702	ASS'Y(Φ0.4）Straight	12mm Disk
AWPH-9702C	ASS'Y(Φ0.4）Taper type	12mm Disk	CORONA
AWPH-9512	ASS'Y(Φ0.7）	12mm Disk
AWPH-9522	ASS'Y(Φ1.0）	12mm Disk
AWPH-9532	ASS'Y(Φ1.3）	12mm Disk
AWPH-9540	ASS'Y(Φ1.3MELF）	12mm Disk
AWPH-9550	ASS'Y(Φ1.8）	12mm Disk
AWPH-9580	ASS'Y(Φ2.5）	20mm Disk
AWPH-9590	ASS'Y(Φ2.5MELF）	20mm Disk
AWPH-9600	ASS'Y(Φ3.75）	20mm Disk

■CP4

PART No.	PART.NAME	SIZE
AMPH8710	ASS'Y(Φ0.7）	12mm Disk
AMPH8720	ASS'Y(Φ1.0）	12mm Disk
AMPH8730	ASS'Y(Φ1.3）	12mm Disk
AMPH8740	ASS'Y(Φ1.8）	12mm Disk
AMPH8750	ASS'Y(Φ2.5）	12mm Disk
AMPH8760	ASS'Y(Φ1.3）	25mm Disk
AMPH8770	ASS'Y(Φ2.5）	25mm Disk
AMPH8780	ASS'Y(Φ3.7）	25mm Disk
AMPH8780	ASS'Y(Φ5.0）	25mm Disk

■XP141(Reflector Circle)

PART No.	PART.NAME	SIZE	REMARCS
ADEPN	Φ0.4	Φ0.4/Φ0.25	CERAMIC
ADEPN-8070	Φ0.7	Φ0.7/Φ0.38	CERAMIC
ADEPN-8080	Φ1.0	Φ1.0/Φ0.65	CERAMIC
ADEPN-8090	Φ1.3	Φ1.3/Φ0.9	CERAMIC
ADEPN-8100	Φ1.8	Φ1.8/Φ1.2	CERAMIC
ADEPN	Φ2.5	Φ2.5/Φ2.0	CERAMIC
ADEPN	Φ3.75	Φ3.75/Φ3.0
ADEPN	Φ5.0	Φ5.0/Φ4.5

■XP142/143

PART No.	PART.NAME	SIZE	REMARCS
ADNPN8306	Φ0.4	Φ0.4/Φ0.25	CERAMIC
ADNPN8316	Φ0.7	Φ0.7/Φ0.38	CERAMIC
ADNPN8236	Φ1.0	Φ1.0/Φ0.65	CERAMIC
ADNPN8246	Φ1.3	Φ1.3/Φ0.9	CERAMIC
ADNPN8344	Φ1.3MELF	Φ1.3/Φ0.9	CERAMIC
ADNPN8256	Φ1.8	Φ1.8/Φ1.2	CERAMIC
ADNPN8354	Φ1.8MELF	Φ1.8/Φ1.2	CERAMIC
ADNPN8266	Φ2.5	Φ2.5/Φ2.0	CERAMIC
ADNPN8364	Φ2.5MELF	Φ2.5/Φ2.0	CERAMIC
ADNPN8276	Φ3.75	Φ3.75/Φ3.0	CERAMIC
ADNPN8266	Φ5.0	Φ5.0/Φ4.5

■XP242/243/341

PART No.	PART.NAME	SIZE	REMARCS
ADEPN8550	Φ2.5		CERAMIC
ADEPN8560	Φ3.75		CERAMIC
DEPN3080	Φ5.0
DEPN3090	Φ0.7
DEPN3100	Φ10.0
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

■QF242 INDEX NOZZLE(Disk Square)

■QP242 SINGLE NOZZLE(Disk Circle)

■XP242/243/341

ブランド一覧へ戻る

■Σ-G4/G5(High-Speed)

PART No.	PART.NAME	SIZE	REMARCS
HG21C…	HG21C(Tension Type)	0.5/0.3/Φ0.15	CERAMIC
HG32C…	HG32C(Tension Type)	Φ0.7/0.4	CERAMIC
HG52C…	HG52C(Tension Type)	Φ1.1/0.6	CERAMIC
HG82C…	HG82C(Tension Type)	Φ1.7/0.9	CERAMIC
	HV81C	Φ1.7/0.9	CERAMIC
	HV13C	Φ1.3／Φ0.9	CERAMIC
	HV14C	Φ1.8／Φ1.1	CERAMIC
	HV15C	Φ3.0／Φ2.0
	HV19C	Φ6.0／Φ4.5
	PK01C	Φ5.0／Φ3.5
	HB03C	Φ1.3／Φ0.9 MELF	CERAMIC
	HB04C	Φ1.8／Φ1.1 MELF	CERAMIC
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

■GXH-1/3(High-Speed)

PART No.	PART.NAME	SIZE	REMARCS
630 128 4842	HA10	Φ0.7/0.4/Φ0.2	CERAMIC
630 129 2878	HV01	Φ0.6／Φ0.4	CERAMIC
630 132 2322	PV01	1.1/0.6/Φ0.4	CERAMIC
630 129 2885	HV02	Φ0.9/Φ0.7	CERAMIC
630 132 9857	PV02	1.7/0.9/Φ0.7	CERAMIC
	PV04	1.7/0.9/Φ0.7	CERAMIC
630 129 2939	HA05	Φ3.0／Φ2.0
630 129 2946	HA09	Φ6.0／Φ2.0
	PA05	Φ2.6／Φ2.0	CERAMIC
630 129 2892	HV03	Φ1.3／Φ0.9	CERAMIC
630 129 2908	HB03	Φ1.3／Φ0.9 MELF	CERAMIC
630 129 2922	HA04	Φ1.8／Φ1.1	CERAMIC
630 129 2915	HB04	Φ1.8／Φ1.1 MELF	CERAMIC
630 152 8267	HG31(TensionType)	0.7/0.4	CERAMIC
630 152 8472	HG51(TensionType)	1.1/0.6	CERAMIC
630 158 9084	HG81(TensionType)	1.7/0.9	CERAMIC
630 152 8267	HV31	0.7/0.4	CERAMIC
630 152 8472	HV51	1.1/0.6	CERAMIC
630 158 9084	HV81	1.7/0.9	CERAMIC
SPECIAL	CNT	DATAforON(CNT,LED,LENS)	SPECIAL

■Σ-G4/G5,GXH-1/3(Multi Nozzle)

PART No.	PART.NAME	SIZE	REMARCS
630 129 8214	VF01	Φ8.0／Φ3.0
630 129 8252	VF02	Φ12.0／Φ8.0
630 130 9255	VF05	Φ9.0／Φ7.0
630 136 0799	VA06	Φ5.0／Φ3.0
630 130 0283	VG35	8.0/2.2
630 130 7831	VG52	7.0/1.4
630 142 4613	VY05	Φ5.0／Φ4.0／Φ3.0
630 136 2359	RA04	Φ1.8／Φ1.1
630 130 9477	VS05	Φ5.0／Φ4.0
630 130 0245	VT32	1.9/12
630 130 8692	VT69	Φ8.6 O-RING
630 132 9284	FF01	Φ8／Φ3
630 133 2611	FF02	Φ12／Φ8
630 132 9253	FA04	Φ1.8／Φ1.1
630 132 9260	FA05	Φ3／Φ2
630 132 9277	FA06	Φ5／Φ3
630 133 2666	WF03	Φ18／Φ15
630 135 3623	WF04	Φ6.0／Φ4.5
	WT32	12/1.9
630 135 2016	WG35	8.0/2.2
630 135 2060	WG51	9.0/1.4
	WG52	7.0/1.4
630 132 9093	ZA06	Φ5.0／Φ3.0
630 132 9109	ZF01	Φ8.0／Φ3.0
630 155 7250	VC76	12/1.0
630 133 6497	FC35	8.1/6.5	GRIPPER
630 133 6534	FC45	10.1/8.5	GRIPPER
630 133 8415	FE05	6.1/5.0	GRIPPER
SPECIAL	CNT	DATAforON(GRIPPER,LED,LENS)

ブランド一覧へ戻る

■YSM-7000,7700,8800

PART No.	PART.NAME	SIZE	REMARCS
BodyΦ14(Black body)	H03/H3M	0.4/Φ0.5/Φ0.25	CERAMIC
BodyΦ14(Black body)	HS1/H1M	Φ0.7/Φ0.38	CERAMIC
BodyΦ14(Black body)	H2/H2M	Φ1.1/Φ0.65	CERAMIC
BodyΦ14(Black body)	H06	Φ1.2/Φ0.9	CERAMIC
BodyΦ14(Black body)	H7	Φ2.0/Φ1.4	CERAMIC
BodyΦ14(Black body)	H07	Φ3.0/Φ2.3
BodyΦ14(Black body)	H21 MELF	Φ0.8/Φ0.45	CERAMIC
BodyΦ14(Black body)	H22 MELF	Φ1.2/Φ0.9	CERAMIC
BodyΦ14(Black body)	H23 MELF	Φ2.0/Φ1.4	CERAMIC
BodyΦ14(Black body)	H24 MELF	Φ3.0/Φ2.3
BodyΦ14(Black body)	H31	Φ5.0/Φ3.0
BodyΦ14(Black body)	H32	Φ6.0/Φ4.0
Body□ 30 (Black body)	H33	Φ9.0/Φ7.0
Body□ 30 (Black body)	H34	Φ11.0/Φ9.0
Body□ 30 (Black body)	H35	Φ13.0/Φ11.0
Body□ 30 (Black body)	H36	Φ18.0/Φ16.0
BodyΦ14(Black body)	SPECIAL	DATA for ON
Body□ 30 (Black body)	SPECIAL	DATA for ON
Body□ 30 (White body)	T7	Φ2.0/Φ1.4	CERAMIC
Body□ 30 (White body)	T07	Φ3.0/Φ2.3
Body□ 30 (White body)	T06	Φ1.6/Φ1.0	CERAMIC
Body□ 30 (White body)	T21 MELF	Φ0.8/Φ0.45	CERAMIC
Body□ 30 (White body)	T22 MELF	Φ1.2/Φ0.9	CERAMIC
Body□ 30 (White body)	T23 MELF	Φ2.1/Φ1.4	CERAMIC
Body□ 30 (White body)	T24 MELF	Φ3.1/Φ2.6
Body□ 30 (White body)	T31	Φ5.0/Φ3.0
Body□ 30 (White body)	T32	Φ6.0/Φ4.0
Body□ 30 (White body)	T33	Φ9.0/Φ7.0
Body□ 30 (White body)	T34	Φ11.0/Φ9.0
Body□ 30 (White body)	T35	Φ13.0/Φ11.0
Body□ 30 (White body)	T36	Φ18.0/Φ16.0
Body□ 30 (White body)	SPECIAL	DATA for ON

■YSM-3300,3500

PART.NAME	SIZE	REMARCS
NP1	Φ1.2/Φ0.4
NP2	Φ1.2/Φ0.6
P2	Φ1.2/Φ0.4	CERAMIC
P7	Φ3.0/Φ1.0
NO.04	Φ0.8/Φ0.5	CERAMIC
NO.05	Φ1.2/Φ0.65	CERAMIC
NO.06	Φ1.6/Φ1.2	CERAMIC
NP.07	Φ3.0/Φ2.3
NO.031	Φ5.0/Φ2.5
NO.32	Φ7.0/Φ4.0
SPECIAL	DATA for ON

ブランド一覧へ戻る

■TCM-3000,3000Z,110J

PART No.	PART.NAME	SIZE	REMARCS
0603		0603	CERAMIC
1005		1.2/0.7	CERAMIC
630 652 9586	Z81	Φ0.6／Φ0.4
630 052 9517	Z11	Φ0.9／Φ0.7
630 052 9579	Z71	Φ1.3／Φ0.9
630 052 9555	Z52 MELF	Φ1.3／Φ0.9
630 052 9524	Z21	Φ1.9／Φ1.1
630 052 9562	Z62	Φ2.5／Φ1.2
630 052 9548	Z41	Φ3.0／Φ2.0
630 052 9531	Z31	Φ6.0／Φ5.0
NOZZLE HOLDER		Φ4.0／Φ3.0

■TCM-1000,1050,1100 Series Nozzle

■TCM-822 Series Nozzle

■TIM-5000 Series Nozzle

■TDM-60 Dispensor

PART No.	PART.NAME	SIZE
	2D/2S(1608)	Φ0.6／Φ0.3 P=0.7
630 052 6837	2D/2S(1608)	Φ0.7／Φ0.4 P=0.8
630-051 2915	2D/2S(2125)	Φ0.8／Φ0.5 P=1.0
	2D/2S(3216)	Φ1.0／Φ0.7 P=1.2
	2D/2S(IC/S)	Φ1.2／Φ0.9 P=2.0
630 051 3165	2D/2S(IC/L)	Φ1.5／Φ1.2 P=1.8

■TDM-1000 Dispensor

PART No.	PART.NAME	SIZE
6400 040 6627	2D/2S(1608)	Φ0.7／Φ0.4 P=0.8
6400 040 6641	2D/2S(2125)	Φ0.8／Φ0.5 P=1.0
	2D/2S(3216)	Φ1.0／Φ0.7 P=1.2
	2D/2S(IC/S)	Φ1.2／Φ0.9 P=1.2
	2D/2S(IC/L)	Φ1.5／Φ1.2 P=1.8

■TDM-3000 Dispensor

PART No.	PART.NAME	SIZE
630 068 1314	2D/2S(1608)	Φ0.7／Φ0.4 P=0.8
630 068 1314	2D/2S(1608)	Φ0.7／Φ0.4 P=0.9
630 070 9414	2D/2S(2125)	Φ0.8／Φ0.5 P=1.0
630 068 1352	2D/2S(3216)	Φ0.9／Φ0.6 P=1.3
630 058 1376	2D/2S	Φ1.3／Φ1.0 P=1.8
630 070 9421	2D/2S	Φ1.3／Φ1.0 P=2.0

ブランド一覧へ戻る

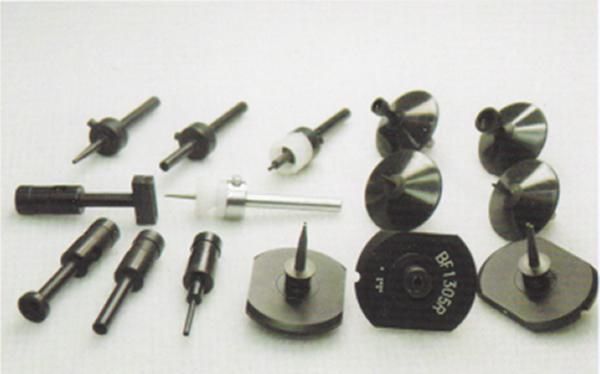

■G200MK

PART No.	PART.NAME	SIZE	REMARCS
BF	1300R	Φ1.3/0.5
BF	10071	Φ1.0/Φ0.7
BF	14100	Φ1.4/Φ1.0
BF	CNT	DATA for ON	SPECIAL

■F-130

PART No.	PART.NAME	SIZE	REMARCS
A-1081-496-*	AF25200(F1)	Φ0.6/Φ0.25	CERAMIC
A-1081-494-*	AF060402(F1)	Φ0.7/Φ0.4	CERAMIC
A-1081-495-*	AF10071(F1)	Φ1.0/Φ0.7	CERAMIC
A-1081-951-*	AF12082(F1)	Φ1.4/Φ0.9	CERAMIC
A-1081-950-*	AF25200(F1)	Φ2.5/Φ2.0
A-1081-952-*	AF40300(F1)	Φ4.0/Φ3.0
A-1081-953-*	AF60400(F)	Φ6.0/Φ4.0
F130	CNT	DATAforON(LED,LENS)	SPECIAL

■E-1000

PART No.	PART.NAME	SIZE	REMARCS
A-8417-333	AF05021	Φ0.45/Φ0.25	CERAMIC
A-8417-334	AF06040	Φ0.6/Φ0.38	CERAMIC
A-8417-336	AF08050	Φ0.8/Φ0.5	CERAMIC
A-8417-337	AF10070	Φ0.9/Φ0.65	CERAMIC
A-8417-339	AF12080	Φ1.3/Φ0.9	CERAMIC
A-8417-340	AF25200	Φ2.5/Φ2.0
A-8417-341	AF40300	Φ4.0/Φ3.0
A-8417-342	AF60400	Φ6.0/Φ4.0
E-1000	CNT	DATAforON(LED,LENS)	SPECIAL

■E-2000

PART No.	PART.NAME	SIZE	REMARCS
A-8417-236T		Φ2.0/Φ1.5
A-8336-437T		Φ2.5/Φ2.0
A-8336-438T		Φ3.0/Φ2.5
A-8336-439T		Φ4.0/Φ5.0
A-8336-440T		Φ10.0/Φ9.0

■SS-H,SS-H2F&REFLECTOR

PART No.	PART.NAME	SIZE	REMARCS
SONY-0504BT	Φ0.65/Φ0.4	Φ0.65/Φ0.4	CERAMIC
X-0935-001-5	#1	Φ0.8/Φ0.5
X-0935-002-5	#2	Φ1.3/Φ0.9
X-0935-002-5M	#2 MELF	Φ1.3/Φ0.9
0-964-698-00	#3	Φ2.5
0-935-121-00	#4	Φ4.0
0-935-121-55M	#5	Φ5.5
SONY-6G-ED		Φ0.65/Φ0.4	CERAMIC
SONY-9G+ED		Φ0.8/Φ0.5	CERAMIC
SONY-12G-ED		Φ1.3/Φ0.9	CERAMIC
SONY-25G-ED		Φ2.5/Φ2.0

ブランド一覧へ戻る

■EXCEN-VN

PART No.	PART.NAME	SIZE	REMARCS
AM03-000152A	VN020(0402)	Φ0.5/0.25*0.2/Φ0.1(DISKΦ9)	CERAMIC
AM03-000153A	VN030(0603,1005)	Φ0.48*0.3/Φ0.2(DISKΦ9)	CERAMIC
AM03-000154A	VN040(1005,1608)	Φ1.0/0.58*0.5/Φ0.28(DISKΦ9)	CERAMIC
AM03-000071A	VN065(1608,2012)	Φ1.2*Φ0.65(DISKΦ9)	CERAMIC
AM03-007248A	VN080(2012)	Φ2.0*1.2王(DISKΦ9)	CERAMIC
AM03-000072A	VN140(2012,3216,3225R)	Φ2.2/Φ1.4(DISKΦ9)	CERAMIC
AM03-000073A	VN220(3225,4532)	Φ3.6/Φ2.2(DISKΦ9)
AM03-000156A	VN400(SOIC8 and)	Φ6.2/Φ4.0(DISKΦ15.6)
AM03-000074A	VN750(QFP48 and)	Φ9.0/Φ7.5(DISKΦ15.6)
AM03-000075A	VN110(PLCC18 and)	Φ12.7/Φ11.0(DISKΦ15.6)
SPECIAL	CNT	DATA for ON

■SM-Series,CP45-NEO

PART No.	PART.NAME	SIZE	REMARCS
J9055153B	CN02S	0.7mm*0.4mm	CERAMIC
J9055154B	CN03S	1.1mm*0.6mm	CERAMIC
J90550133D	CN030	Φ0.5/Φ0.25	CERAMIC
J9055134C	CN040	Φ0.75/Φ0.4	CERAMIC
J9055136C	CN065	Φ1.2/Φ0.65	CERAMIC
	CN110S	Φ2/Φ1.2	CERAMIC
J9055159C	CN140	Φ2.2/Φ1.4	CERAMIC
J9055257A	CN220	Φ3.6/Φ2.2
J9055258A	CN400	Φ6.0/Φ4.0(Disk9.8mm)
J9055218A	CN400N	Φ6.0/Φ4.0(Disk13.4mm)
J9055259A	CN750	Φ9.0/Φ7.5(Disk13.4mm)
J9055260A	CN1100	Φ12.7/Φ11.0(Disk15.6mm)
CN22～CN110	CN220～CN110RUBBER	Φ3.5～Φ11.0
SPECIAL	CNT	DATA for ON	SPECIAL
NOZZLE HOLDER	BELL NOZZLE

■CP45F-V

PART No.	PART.NAME	SIZE	REMARCS
J7055180F	TN030	Φ0.5/Φ0.25	CERAMIC
J7055246C	TN040	Φ0.75/Φ0.4	CERAMIC
J7055267C	TN065	Φ1.2/Φ0.65	CERAMIC
J7055131E	TN14	Φ2.2/Φ1.4	CERAMIC
J7055132D	TN22	Φ3.6/Φ2.2	NORMAL
J7055433D	TN40	Φ6.2/Φ4.0	NORMAL
J7055135D	TN75	Φ9.0/Φ7.5	NORMAL
J7055137D	TN100	Φ12.7/Φ11.0	NORMAL
TN22～TN110 PAD	TN22～TN100 RUBBER	Φ3.5/Φ11.0	RUBBER
SPECIAL	CNT	DATA for ON
NOZZLE HOLDER	Bellows comp'Ass'y

■CP40L-V

PART No.	PART.NAME	SIZE	REMARCS
SAM-N045	N045	Φ1.0/Φ0.5
SAM-N08	N08	Φ1.5/Φ0.8
SAM-N14	N14	Φ2.2/Φ1.4
SAM-N24	N24	Φ4.0/Φ2.4
SAM-N40	N40	Φ6.2/Φ4.0
SAM-N75	N75	Φ9.0/Φ7.5
SAM-N110	N110	Φ12.7/Φ11.0
SPECIAL	CNT	DATA for ON	SPECIAL
NOZZLE HOLDER	Bellows comp'Ass'y

■DP20 Despensor

PART No.	PART.NAME	SIZE
DP-20	B/D(2D/2S)	Φ0.7/Φ0.4,P=0.8
DP-20	B/D(2D/2S)	Φ0.8/Φ0.5,P=1.0
DP-20	B/D(2D/2S)	Φ1.0/Φ0.7,P=1.2
DP-20	B/D(2D/2S)	Φ1.2/Φ0.8,P=2.0

■DP50 Despensor

PART No.	PART.NAME	SIZE
DP-50	B/D(2D/2S)	Φ0.7/Φ0.4,P=0.8
DP-50	B/D(2D/2S)	Φ0.8/Φ0.5,P=1.0
DP-50	B/D(2D/2S)	Φ1.0/Φ0.7,P=1.2
DP-50	B/D(2D/2S)	Φ1.2/Φ0.8,P=2.0

ブランド一覧へ戻る

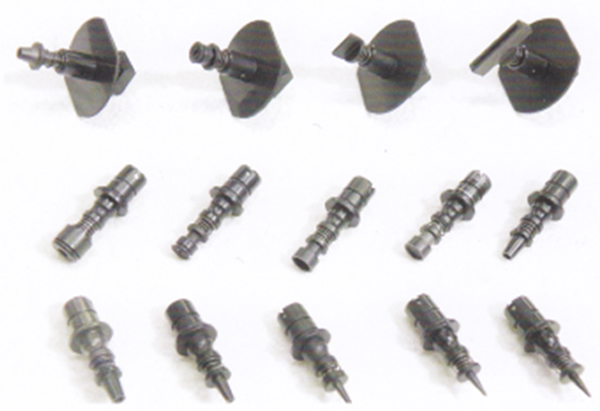

■GENERAL NOZZLE(MX310,MPS-1010,MPS-1020)

PART No.	PART.NAME	SIZE	REMARCS
21003-67190	H(0603)	Φ0.5/Φ0.25	CERAMIC
21003-61090	A(STD TYPE)	Φ1.0/Φ0.5	CERAMIC
21003-61090B	A(BSE TYPE)	Φ0.7/Φ0.4	CERAMIC
21003-62090	B	Φ1.2/Φ0.7	CERAMIC
21003-63090	C	Φ2.0/Φ1.0
21003-64090	D	Φ3.0/Φ2.0
21003-65090	E	Φ6.0/Φ4.5
21003-64390	D-S03	Φ4.7/Φ4.0
21003-65090	P2-1	Φ8.8/Φ6.5	O-RING
21003-66290-000	P2-1-S02	Φ6.0	RUBBER
21003-63J90-201	C-S0J-2	Φ4.5/Φ3.5 LED	POM
21003-63M90-300	D-S03	Φ12.0/Φ8.0	PAD
21003-64c90-000	D-S10	4.4/2.5	CNT
21003-64j90-300	D-S0J-3	6.0/1.0	CNT
21003-61190	A-S01	12.0/2.0	CNT
General	CNT	DATAforON(LED,LENS)	SPECIAL

■PRECISION(QP)NOZZLES(MX240,1020-QP)

PART No.	PART.NAME	SIZE	REMARCS
21243-67190	QP H-4 S01	Φ0.5/Φ0.25	CERAMIC
21243-67290-002	QP-H-4-S02	Φ0.7/Φ0.4	CERAMIC
21243-61090-003	QP-A	Φ1.0/Φ0.5	CERAMIC
21243-62090	QP-B	Φ1.2/Φ0.65	CERAMIC
21243-63090	QP-C	Φ2.0/Φ1.0
21243-64090	QP-D	Φ3.0/Φ2.0
21243-65090	QP-E	Φ6.0/Φ4.5
21243-66090	QP-P2-1	Φ10.0/Φ8.5	O-RING
21243-66190-001	QP-P2-1-S01	Φ6.0	RUBBER
21243-66D90-001	QP-P2-1-S0D	Φ3.5	PAD
21243-61190-001	QP-A-S01	8.0/1.6	CNT
21243-63190-001	QP-C-S01	3.6/1.0	CNT
21243-63390-000	QP-C-S03	22/3.0	CNT
QP	CNT	DATAforON(LED,LENS)	SPECIAL

ブランド一覧へ戻る

■ASSEMBLEON MG-3,MC-1/3(YAMAHA YS12/24,YG12,YF12)

PART No.	PART.NAME	SIZE	REMARCS
KHY-M77AO-AOX	310A SET	0.3/0.25(○)	CERAMIC
	310A TIP		CERAMIC
KHY-M7710-AOX	311A SET	0.75/0.35(□)	CERAMIC
	311A TIP		CERAMIC
KHY-M7720-AOX	312A SET	1.2/0.45(◇)	CERAMIC
	312A TIP		CERAMIC
KHY-M7730-AOX	313A SET	2.0/1.3(王)	CERAMIC
	313A TIP		CERAMIC
KHY-M7710-A1X	301A SET	0.7/0.8(X)	CERAMIC
	301A TIP		CERAMIC
KHY-M7720-A1X	302A SET	1.0/1.7(X)	CERAMIC
	302A TIP		CERAMIC
KHY-M7740-AOX	303A SET/#314A SET
	303A TIP/#314A TIP
KHY-M7750-AOX	304A/#315A	Φ8.0	O-RING
KHY-M7760-AOX	305A/#316A	Φ15.0	O-RING
KHY-M7760-AOX	306A/#317A	Φ3.0/2.0 V-CUT	MELF
KHY-M7790-A1X	309A SET	Φ1.2/Φ0.7	CERAMIC
	309A TIP		CERAMIC
SPECIAL	CNT	DATAforON(LED,LENS)

■ASSEMBLEON MG-1/8(YAMAHA YG100B,YG100R)

PART No.	PART.NAME	SIZE	REMARCS
0603 CHIP ONLY	0603 SET	0.35/0.65(□）	CERAMIC
	0603 TIP		CERAMIC
KGS-M7710-A0X	211A SET	0.75/0.35(□)	CERAMIC
	211A TIP		CERAMIC
KGS-M7720-A0X	212A SET	1.0/1.7(X)	CERAMIC
	212A TIP		CERAMIC
KGS-M7730-A0X	213A	Φ4.0/3.0/2.0
KGS-M7740-A0X	214A	Φ8.0	O-RING
KGS-M7750-A0X	215A	Φ13.0	O-RING
KGS-M7760-A0X	216A	Φ3.0/2.0 V-CUT	MELF
KGS-M7790-A0X	219A SET	Φ1.2/Φ0.7	CERAMIC
	219A TIP		CERAMIC
KV8-M71N1-A00	211F TIP&SET(71F)	0.7/0.8
KV8-M71N2-A00	212F TIP&SET(72F)	1.0/1.7
KV8-M71N3-A00	213F SET(73F)	Φ4.0/3.0/2.0
KV8-M71N9-A00	219F TIP&SET(79F)	Φ1.2/Φ0.7
SPECIAL	CNT	DATAforON(LED,LENS)

■ASSEMBLEON TOPAZ-XII,OPAL-XII(YAMAHA,YV100X,YV100XF)

PART No.	PART.NAME	SIZE	REMARCS
0603 CHIP ONLY	0603 SET	0.35/0.65(□）	CERAMIC
	0603 TIP		CERAMIC
KV8-M7710-A0X	71A SET	0.7/0.8(X)	CERAMIC
	71A TIP		CERAMIC
KV8-M7720-A0X	72A SET	1.0/1.7(X)	CERAMIC
	72A TIP		CERAMIC
KV8-M7730-A0X	73A	Φ4.0/3.0/2.0
KV8-M7740-A0X	74A	Φ8.0	O-RING
KV8-M7760-A0X	76A	Φ3.0/2.0 V-CUT	MELF
KV8-M7790-A0X	79A SET	Φ1.2/Φ0.7	CERAMIC
	79S TIP		CERAMIC
KV8-M71N1-A00	71F SET	0.7/0.8(X)
	71F TIP
KV8-M71N2-A00	72F SET	1.0/1.7(X)
	72F TIP
KV8-M71N3-A00	73F SET	Φ4.0/3.0/2.0
	73F TIP
KV8-M71N9-A00	79F SET	Φ1.2/Φ0.7	CERAMIC
	79F TIP		CERAMIC
SPECIAL	CNT	DATAforON(LED,LENS)

■ASSEMBLEON EMERALD-XII(YAMAHA YV88X YV88XF)

PART No.	PART.NAME	SIZE	REMARCS
KV7-M7710-A1X	61A SET	0.7/0.8(X)
	71A TIP
KV7-M7720-A1X	62A SET	1.0/1.7(X)
	72A TIP
KV7-M7730-A1X	63A
KV7-M7740-A1X	64A		O-RING
KV7-M7750-A1X	65A		O-RING
KV7-M7760-A1X	66A		MELF
KV7-M7790-A1X	69A		CERAMIC
	79A TIP		CERAMIC
KGA-M71N1-A0X	61F SET&TIP	0.7/0.8(X)
KGA-M71N2-A0X	62F SET&TIP	1.0/1.7(X)
KGA-M71N3-A0X	63F SET	Φ4.0/3.0/2.0
KGA-M71N4-A0X	64F	Φ8.0	O-RING
KGA-M71N5-A0X	65F	Φ11	O-RING
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

■ASSEMBLEON TOPAZ,EMERALD(YAMAHA,YV100-II,YVL-88)

PART No.	PART.NAME	SIZE	REMARCS
KMO-M711A-02X	31A SET	1.0/1.2(X)	CERAMIC
	31A TIP		CERAMIC
KV8-M7710-A0X	71A TIP(Body #31)	0.7/0.8(X)	CERAMIC
KV8-M7720-A0X	72A TIP(Body#31)	1.0/1.7(X)	CERAMIC
KMO-M711B-00X	32-1 With Reflector	Φ4.0/3.0	REFLECTOR
KMO-M711C-00X	32-2	Φ4.0/3.0
KMO-M711D-00X	33	Φ10	O-RING
KMO-M711E-00X	34	Φ15	O-RING
KMO-M711F-00X	35	Φ3.0/2.0 V-CUT	MELF
	39A SET	Φ1.2/Φ0.7	CERAMIC
	39A TIP		CERAMIC
SPECIAL	CNT	DATAforON(LED,LENS)	SPECIAL

*Note(YVL88,YV100-II):Only Bosungeng style type Nozzle 31Body & Tip

■ASSEMBLEON AX5

PART No.	PART.NAME	SIZE	REMARCS
	CP3	0.95/0.55/Φ0.3(2HOLES)	SOLID Type
	CP4	1.3/0.9/Φ0.45(2HOLES)	SOLID Type
	CP5	2.5/1.5/Φ0.8(2HOLES)	SOLID Type
	CP7	5.0/3.0/Φ1.4	SOLID Type
	V2	Φ6.5 O-RING	SOLID Type
58241	CP L2(58241)	0.75/0.4/Φ0.2(2HOLES)	Tension Type
59122	CP L3(59122)	0.95/0.55/Φ0.3(2HOLES)	Tension Type
59132	CP L4(59132)	1.3/0.9/Φ0.45(2HOLES)	Tension Type
	CP L5	2.5/1.5/Φ0.8(2HOLES)	Tension Type

ブランド一覧へ戻る

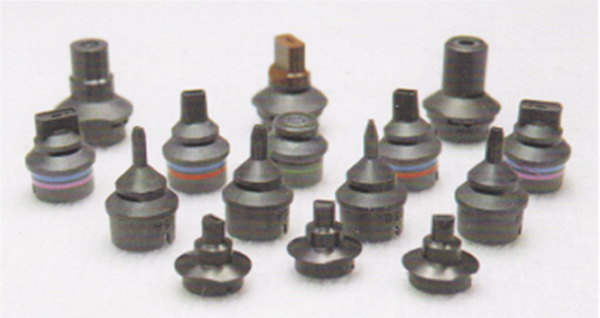

■SIEMENS SIPLACE(CPP-H12,H20)

PART No.	PART.NAME	SIZE	REMARCS
00322603-05	701/901	1.0/0.5	CERAMIC
00348186-03	702/902	0.5/0.25	CERAMIC
00322602-05	704/904	1.6/0.8	CERAMIC
00325970-04	721/921
00333652-06	725/925		CERAMIC
00346524-03	735/935	5.4/2.6
00322591-06	737/937	7.3/4.3
03013307-01	1001	1.5/0.8
03015869-01	1003	1.0/0.5
03015840-01	1004	3.2/1.6
03015854-01	1006	0.5/0.25
03013425-01	1033	3.2/1.6
03015194-01	1035	3.0/1.4
	2003
	2004
	2006

ブランド一覧へ戻る

このページのTOPへ

部品の搭載TOPに戻る
